NFPA Configuration
Entirely unique to the TerrAdaptor is the ability to adjust the head angle in multiple directions. This allows the head to remain level even when the terrain is not. A level head helps keep attached rigging clean, safe, and organized.
Symmetric Tripod
Symmetric Tripods are typically used for straight vertical access such as above manholes or access hatches. When straddling a manhole or access hatch, a symmetric tripod's feet are equal distance from the center of the manhole or hatch. All three legs are equally loaded. This is most often the strongest tripod configuration.
includes NFPA configuration
TerrAdaptor™ Tripod Head
2 Offset Leg Clamps with 3 Load Locking Pins each
Main Attachment Pin
3 Legs Kits complete with Feet, Hobble Plates & Baskets
Center Leg Clamp with 3 Load Locking Pins each
3 Rope Hobble Sections
Cotter Pin Kit
Leg Coupling Pin
2 Lash Ring with 1 Coupling Pin each
TerrAdaptor™ Head/ Accessory Bag
2 TerrAdaptor™ Leg Bag
TerrAdaptor™ User Guide
MBS: 36 kN (8,093 lbf)
TerrAdaptor Tripod System Kit Descriptions

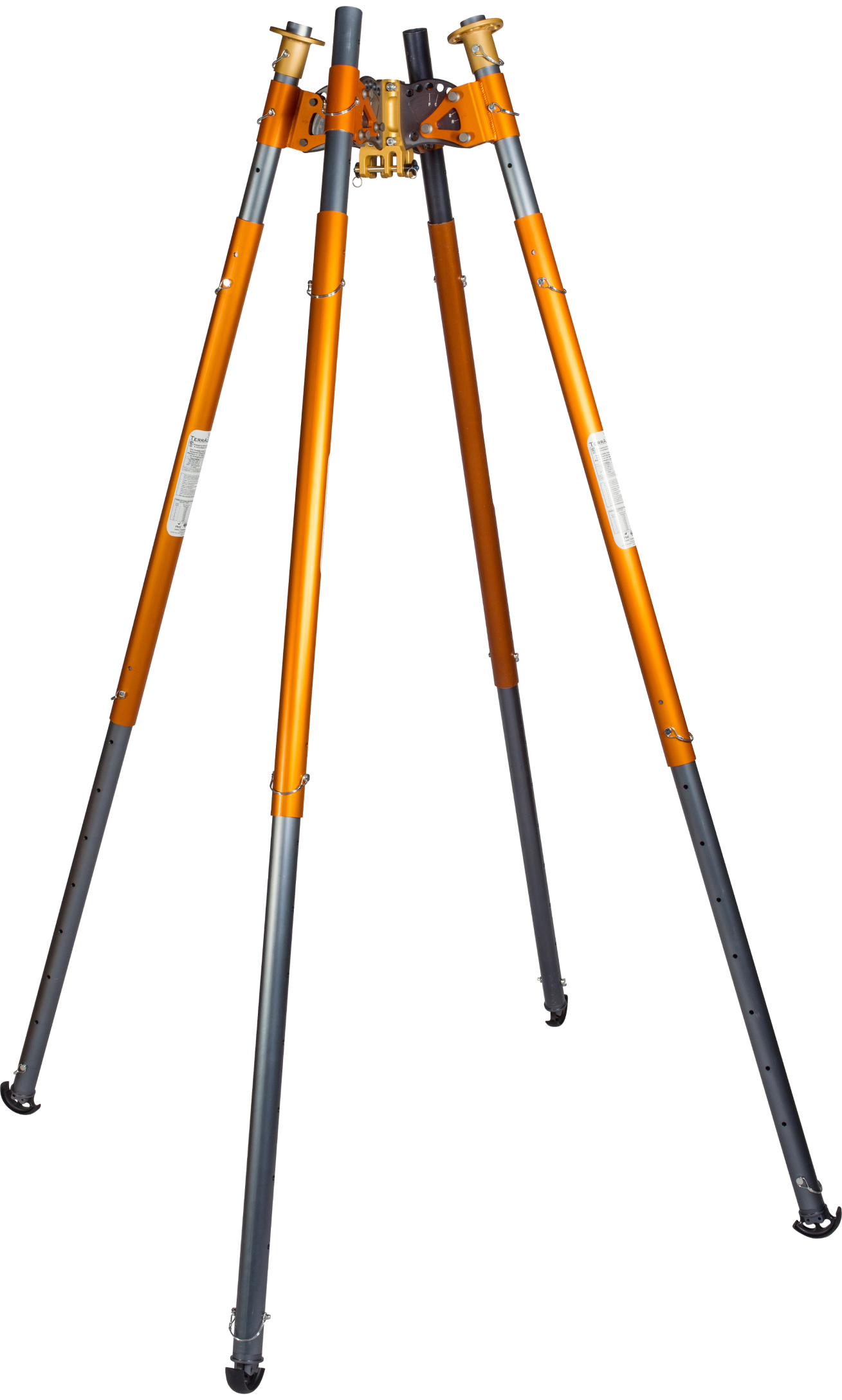

Symmetric Quadpod
Symmetric Quadpods fill the same role as symmetric tripods, but with added strength and stability of a fourth leg.
includes NFPA configuration
Quadpod Head Attachment
Leg kit complete with Foot, Hobble Plate & Basket
Center Leg Clamp with 3 Load Locking Pins each
Main Attachment Pin
Rope Hobble Section
MBS: 36 kN (8,093 lbf)
TerrAdaptor™ Quadpod Attachment Kit

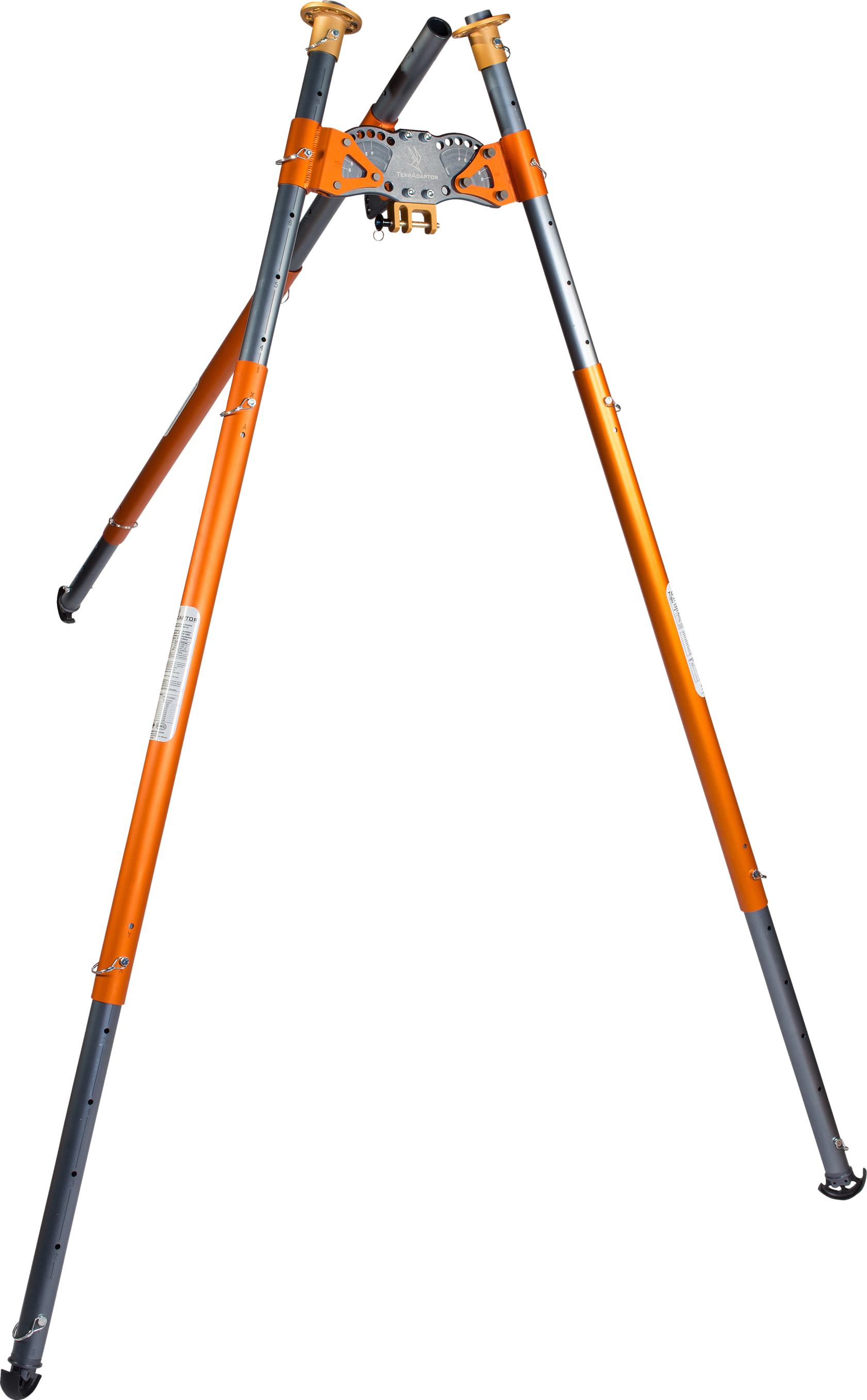

Edge-A Tripod
Probably the most popular configuration for an over the edge rescue, the Edge-A Tripod is essentially an A-Frame with the added stability of a third leg. Edge A configurations are popular for their large work areas, high strength and the ability to configure the A leaning either over or away from the edge. The TerrAdaptor's rear leg can be left to hinge (unsecured) or can be pinned in place for added stability.
A-Frame / Bi-Pod
The TerrAdaptor is easily configured as a standard A-Frame or a Sideways A-Frame often used in narrow areas like catwalks. The half plate can be removed to eliminate weight and opportunities for it to be in the way, or it may remain attached.
Gin Pole / Monopod
The Gin Pole or Monopod is the TerrAdaptor's lightest high anchor configuration. A properly rigged gin pole/monopod can support several thousand pounds while remaining a lightweight, single leg assembly. The Gin Pole is also ideal for close quarters where there is not enough room for multi-leg configurations.
Each rescue situation is unique and the ultimate safety of the TerrAdaptor system rests in the knowledge and training of those setting up the system.
